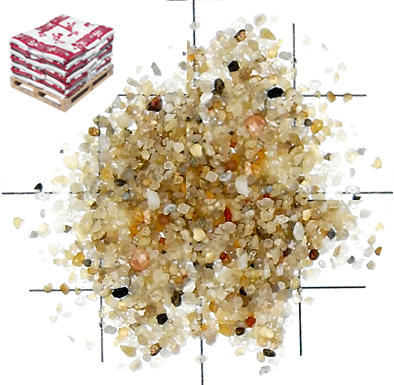

10:18 Braking Sand for Locomotives - 5kg Pack
Product Code: 3551/5

 50 Pack Pallet (250kg):   £190.80 Inc VAT and delivery*
 100 Pack Pallet (500kg):   £310.80 Inc VAT and delivery*
 200 Pack Pallet (1 Tonne):   £478.80 Inc VAT and delivery*



10:18 Braking Sand for Railway Locomotive, Multiple Unit and On-Track Equipment Sandboxes. Product conforms to BR600 and Rail Group Standard GM/RT2461

Sand Size: 10:18 0.85-1.7mm

Pack size: 5kg mini pack with integral handle for ease of manual handling and reduced wastage

Packing Configuration: Packs labelled and stacked on a standard 1000x1200 pallet and stretch wrapped.

Description & Use:
Natural dried free flowing silica sand specifically selected and screened to 10:18 grade to conform to the requirements for braking sand for Railway Locomotive, Multiple Unit and On-Track Equipment sandboxes

Product is supplied kiln dried and securely packed to prevent the ingress of moisture.

Product is held as a stock item for immediate dispatch.

Sand conforms to:
Rail Safety Standards Board, BR600, Specification for Sand (February 1991) Braking sand for Railway Locomotive sandboxes.
Rail Group Standard GM/RT2461 Sand for sanding equipment fitted to Multiple Units and On-Track machines: Appendix A, August 2001.
Sand is certified to ISO 9001

10:18 ? : We are often asked where the designation 10:18 (also written as 10/18 or described as Ten Eighteen) comes from. It is simply derived from the old British Standard sieve size measurements on which sands were graded. A "ten" was 10 holes per square inch whilst "18" was a slightly smaller size being 18 holes to the inch. The sizes approximate to the metric equivalent of 1.7mm and 0.85mm

Particle Size: 10:18 - 0.85-1.7mm
Sieve Size mm % Retained
2.4 0
1.6 10
1.18 60.0
1.0 18
0.6 4
0.5 2.5
Passing 0.5 0.4
Chemical Composition:
SiO2 98.3%
Al2O3 0.3%
Fe2O3 <1.29%
CaO <0.2%
MgO <0.2%
Loss on Ignition Max 3%
Particle Shape Rounded / Sub-Rounded
Specific Gravity 2.65
Bulk Density Approx 1.6kg.m3
Hardness 6-7 on Mohs Scale
Acid Solubility Max 2%
Uniformity >1.4

Specialist Aggregates' Price Promise:
All prices shown include UK VAT and delivery to 90% of UK locations - Read More. - There are no hidden charges on checkout.

We export throughout Europe and Worldwide - please enquire for shipping rates.

Quick Contact:
WhatsApp your enquiry and images to 07484 022898

Produced from sand obtained from licensed and regulated European sources.
Packaging has been sourced with due environmental consideration, in turn please responsibly and safely discard or recycle.

Specify: 10:18 Braking Sand for Locomotives, Multiple Units and On-Track Equipment Part Number 3551/5 from Specialist Aggregates
