Silica Filtration Sand 8:16 gradeMake the filters a feature ! Ripley's Aquarium TorontoSilica Sand 8:16 being packed at our depot in RugeleySilica Sand 8:16 being packed at our depot in RugeleySilica Sand 8:16 being packed at our depot in RugeleySilica Sand 8:16 being packed at our depot in RugeleySilica Sand 8:16 being packed at our depot in RugeleyProduct supplied securely wrapped on a pallet
Filter Media - Silica Sand 8:16
Product Code: 3409

 10 Pack Pallet (¼ Tonne):   £183.60 Inc VAT and delivery*
 20 Pack Pallet (½ Tonne):   £272.40 Inc VAT and delivery*
 40 Pack Pallet (1 Tonne):   £356.40 Inc VAT and delivery*

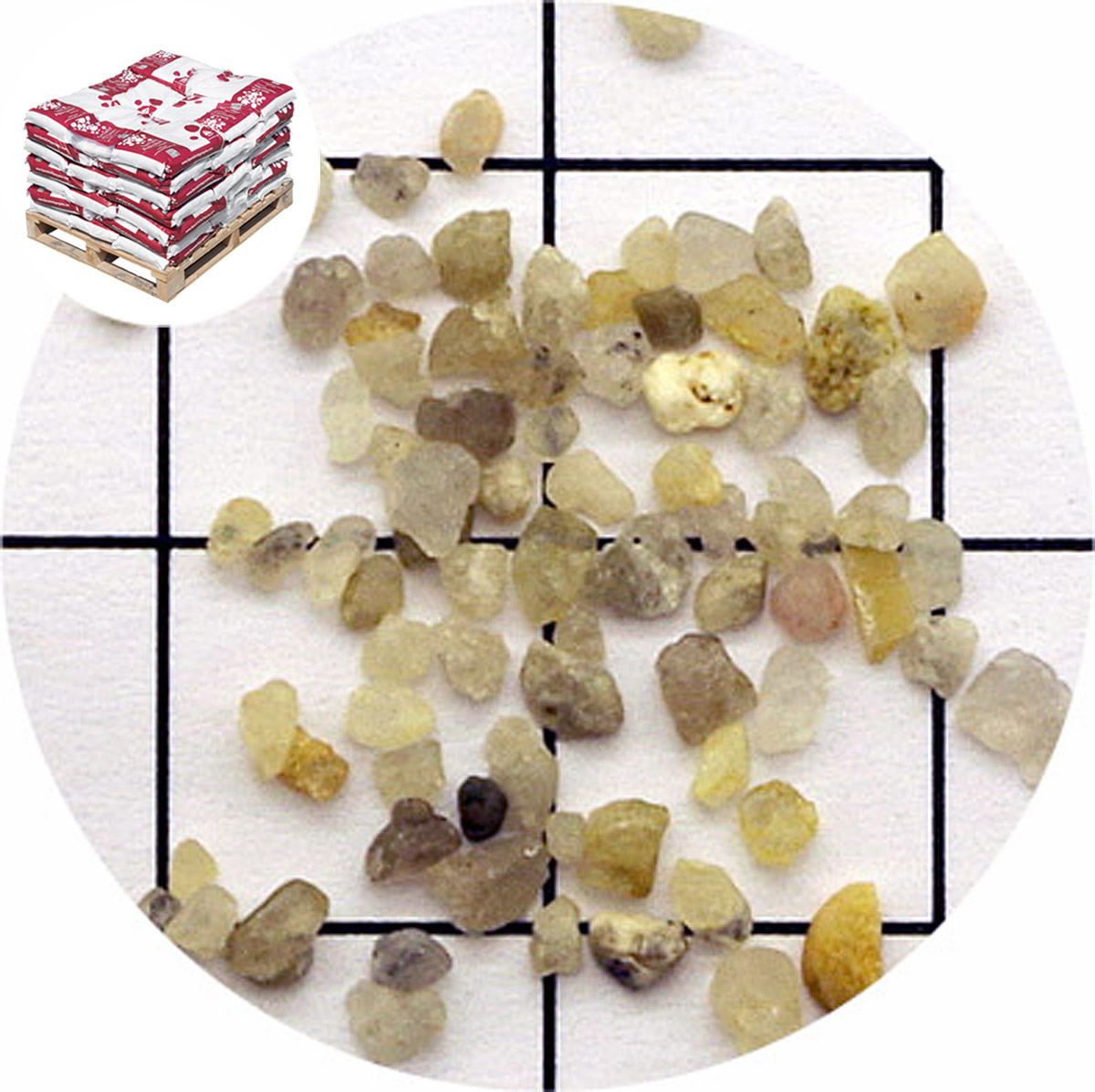

Filtration Sand - Grade 8:16 (1-2mm) A coarse grade of silica sand filtration media. Frequently specified for industrial, swimming pool, pond and potable water filters.

Pack size: 25kg

Size: 1.0-2.0mm (BS 8:16)

Grading Specification: Max 5% Retained 2.0mm : Max 5% Passing 1.0%mm

Description & Use:
A natural washed and closely graded silica sand suitable for industrial, swimming pool, pond and potable water filters. The sand my either be used alone or as a support layer for finer sands eg 16:30 grade.

Particle Size:
Sieve Size mm % Retained
2.36 0
2.00 1.5
1.7 18
0.71 30.0
0.6 34
1.4 35.5
1.18 29.5
1.0 13.5
Passing 1.0 2.0
Chemical Composition:
SiO2 92.6%
Al2O3 0.8%
Fe2O3 <6.46%
Loss on Ignition 0.64%
Particle Shape Rounded / Sub-Rounded
Specific Gravity 2.65
Bulk Density Approx 1.6kg.m3
Hardness 6-7 on Mohs Scale
Acid Solubility Max 2%

Filtration for Non Filtration Specialists:
Pools, spas and ponds require water to be filtered (and as appropriate disinfected) to provide safe places for recreation and livestock. Poor maintenance can lead to clogged filters which can increase the risk of water borne infection.

Typically water filters contain clean closely graded silica sand often carried on a bed of filter support gravel. A pressure fed sand filter or "high rate" sand filter, which is generally located immediately after the pump will typically remove particles down to 10 microns in size (ten thousands of a millimetre).

Water is pumped under pressure into the top of the filter and leaves at the bottom. On the way through suspended dirt and debris in the water is trapped between the particles of sand.

Sand filters need to be cleaned regularly. By re-directing water back up through the sand bed and out to waste, accumulated dirt is flushed out, this is process is called back washing. Sand filters come with a valve known as a multi-port valve to change the direction of water flow and to facilitate this process.

Sand media needs changing every three to five years, however, also be aware of a phenomena known as channelling. This is where water cuts channels in the sand leading to a loss in filter efficiency an again will require the media to be replaced.

* Specialist Aggregates' Price Promise:
All prices shown include UK VAT and delivery to 90% of UK locations - Read More. - There are no hidden charges on checkout.

We export throughout Europe and Worldwide - please enquire for shipping rates.

Quick Contact:
WhatsApp your enquiry and images to 07484 022898

Logistics: ( See also Information / Delivery)
This product option is supplied packed in safe and easy to handle weatherproof packs stacked on a wooden pallet. Packs are stretch wrapped onto the pallet for added protection and security.

Pallets are delivered by national couriers and off-loaded onto a level hard-standing using vehicle tail-lift and pallet truck. Our couriers do not offer a crane (Hiab) off-load facility.

Pallet deliveries by national couriers are not advised for locations with narrow or difficult access. Please advise during checkout or contact our office for advice if you have specific delivery requirements or concerns.

Failed deliveries due to problems with access which as not been pre-notified will be returned to our warehouse and charged for both outward and return delivery,

The immediate product wrapping, pallet stretch wrap and wooden pallet can all be recycled.

Design Specify: 8:16 Silica sand filter media from Specialist Aggregates.

Health & Safety: This silica based sand is not suitable for shot blasting.

Product Code: 3409

Would A Sample Help?
Request a sample to view colour and form
or send us an enquiry
Request A Sample or  Start An Enquiry
